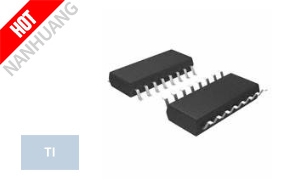

ULN2003ANSR Images
- Manufacturer: Texas Instruments (TI)
- Category: Discrete Semiconductor Products~Transistors - Bipolar (BJT) - Arrays Package/Case: 16-SOIC (0.209, 5.30mm Width)
- Description: IC PWR RELAY 7NPN 1:1 16SO
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
ULN2003ANSR Specifications:
- MfrPart.: ULN2003ANSR
- Mfr: Texas Instruments
- Description: IC PWR RELAY 7NPN 1:1 16SO
- Product Category: Discrete Semiconductor Products~Transistors - Bipolar (BJT) - Arrays
- Package: Tape & Reel (TR),Cut Tape (CT)
- Series: Automotive, AEC-Q100
- PartStatus: Active
- TransistorType: 7 NPN Darlington
- Current-Collector(Ic)(Max): 500mA
- Voltage-CollectorEmitterBreakdown(Max): 50V
- VceSaturation(Max)@IbIc: 1.6V @ 500µA, 350mA
- Current-CollectorCutoff(Max): 50µA
- DCCurrentGain(hFE)(Min)@IcVce: -
- Power-Max: -
- Frequency-Transition: -
- OperatingTemperature: -20°C ~ 70°C (TA)
- MountingType: Surface Mount
- Package/Case: 16-SOIC (0.209, 5.30mm Width)
- ULN2003ANSR TI, IC PWR RELAY 7NPN 1:1 16SO, Discrete Semiconductor Products~Transistors - Bipolar (BJT) - Arrays
ULN2003ANSR, TI authentic parts in stock from TI authorized distributors, order today, can ship immediately.
