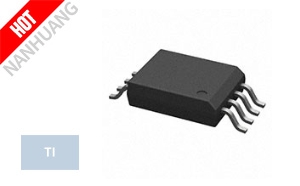

UCC5320SCDWV Images
- Manufacturer: Texas Instruments (TI)
- Category: Isolators~Isolators - Gate Drivers Package/Case: 8-SOIC (0.295, 7.50mm Width)
- Description: PWR MGMT MOSFET/PWR DRIVER
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
UCC5320SCDWV Specifications:
- MfrPart.: UCC5320SCDWV
- Mfr: Texas Instruments
- Description: PWR MGMT MOSFET/PWR DRIVER
- Product Category: Isolators~Isolators - Gate Drivers
- Package: Tube
- Series: -
- PartStatus: Active
- Technology: Capacitive Coupling
- NumberofChannels: 1
- Voltage-Isolation: 3000Vrms
- CommonModeTransientImmunity(Min): 100kV/µs
- PropagationDelaytpLH/tpHL(Max): 72ns, 75ns
- PulseWidthDistortion(Max): 20ns
- Rise/FallTime(Typ): 12ns, 10ns
- Current-OutputHighLow: 2.4A, 2.2A
- Current-PeakOutput: 4.3A
- Voltage-Forward(Vf)(Typ): -
- Current-DCForward(If)(Max): -
- Voltage-OutputSupply: 13.2V ~ 33V
- OperatingTemperature: -40°C ~ 125°C
- MountingType: Surface Mount
- Package/Case: 8-SOIC (0.295, 7.50mm Width)
- UCC5320SCDWV TI, PWR MGMT MOSFET/PWR DRIVER, Isolators~Isolators - Gate Drivers
UCC5320SCDWV, TI authentic parts in stock from TI authorized distributors, order today, can ship immediately.
