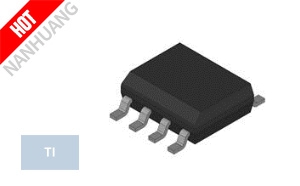

UCC27525DSDR Images
- Manufacturer: Texas Instruments (TI)
- Category: Integrated Circuits (ICs)~PMIC - Gate Drivers Package/Case: 8-WDFN Exposed Pad
- Description: IC GATE DRVR LOW-SIDE 8SON
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
UCC27525DSDR Specifications:
- MfrPart.: UCC27525DSDR
- Mfr: Texas Instruments
- Description: IC GATE DRVR LOW-SIDE 8SON
- Product Category: Integrated Circuits (ICs)~PMIC - Gate Drivers
- Package: Tape & Reel (TR),Cut Tape (CT)
- Series: -
- PartStatus: Active
- DrivenConfiguration: Low-Side
- ChannelType: Independent
- NumberofDrivers: 2
- GateType: IGBT, N-Channel MOSFET
- Voltage-Supply: 4.5V ~ 18V
- LogicVoltage-VILVIH: 1V, 2.3V
- Current-PeakOutput(SourceSink): 5A, 5A
- InputType: Inverting, Non-Inverting
- HighSideVoltage-Max(Bootstrap): -
- Rise/FallTime(Typ): 7ns, 6ns
- OperatingTemperature: -40°C ~ 140°C (TJ)
- MountingType: Surface Mount
- Package/Case: 8-WDFN Exposed Pad
- UCC27525DSDR TI, IC GATE DRVR LOW-SIDE 8SON, Integrated Circuits (ICs)~PMIC - Gate Drivers
UCC27525DSDR, TI authentic parts in stock from TI authorized distributors, order today, can ship immediately.
