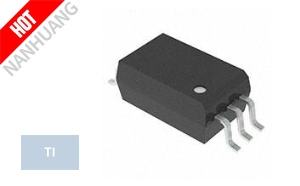

UCC23313DWY Images
- Manufacturer: Texas Instruments (TI)
- Category: Isolators~Isolators - Gate Drivers Package/Case: 6-SOIC (0.295, 7.50mm Width)
- Description: IC POWER MANAGEMENT
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
UCC23313DWY Specifications:
- MfrPart.: UCC23313DWY
- Mfr: Texas Instruments
- Description: IC POWER MANAGEMENT
- Product Category: Isolators~Isolators - Gate Drivers
- Package: Tube
- Series: -
- PartStatus: Active
- Technology: Optical Coupling
- NumberofChannels: 1
- Voltage-Isolation: 3750Vrms
- CommonModeTransientImmunity(Min): 150kV/µs
- PropagationDelaytpLH/tpHL(Max): 105ns, 105ns
- PulseWidthDistortion(Max): 35ns
- Rise/FallTime(Typ): 28ns, 25ns (Max)
- Current-OutputHighLow: 4.5A, 5.3A
- Current-PeakOutput: 4.5A, 5.3A
- Voltage-Forward(Vf)(Typ): 2.1V
- Current-DCForward(If)(Max): 16 mA
- Voltage-OutputSupply: 14V ~ 33V
- OperatingTemperature: -40°C ~ 125°C
- MountingType: Surface Mount
- Package/Case: 6-SOIC (0.295, 7.50mm Width)
- UCC23313DWY TI, IC POWER MANAGEMENT, Isolators~Isolators - Gate Drivers
UCC23313DWY, TI authentic parts in stock from TI authorized distributors, order today, can ship immediately.
