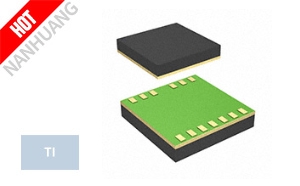

UCC21225ANPLT Images
- Manufacturer: Texas Instruments (TI)
- Category: Isolators~Isolators - Gate Drivers Package/Case: 13-VFLGA
- Description: DGTL ISO 2.5KV GATE DRVR 13VLGA
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
UCC21225ANPLT Specifications:
- MfrPart.: UCC21225ANPLT
- Mfr: Texas Instruments
- Description: DGTL ISO 2.5KV GATE DRVR 13VLGA
- Product Category: Isolators~Isolators - Gate Drivers
- Package: Tape & Reel (TR),Cut Tape (CT)
- Series: -
- PartStatus: Active
- Technology: Capacitive Coupling
- NumberofChannels: 2
- Voltage-Isolation: 2500Vrms
- CommonModeTransientImmunity(Min): 100V/ns
- PropagationDelaytpLH/tpHL(Max): 30ns, 30ns
- PulseWidthDistortion(Max): 6ns
- Rise/FallTime(Typ): 6ns, 7ns
- Current-OutputHighLow: 4A, 6A
- Current-PeakOutput: -
- Voltage-Forward(Vf)(Typ): -
- Current-DCForward(If)(Max): -
- Voltage-OutputSupply: 3V ~ 18V
- OperatingTemperature: -40°C ~ 125°C
- MountingType: Surface Mount
- Package/Case: 13-VFLGA
- UCC21225ANPLT TI, DGTL ISO 2.5KV GATE DRVR 13VLGA, Isolators~Isolators - Gate Drivers
UCC21225ANPLT, TI authentic parts in stock from TI authorized distributors, order today, can ship immediately.
