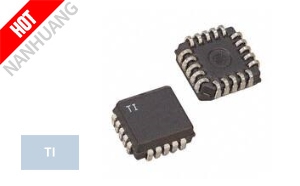

UC2526AQ Images
- Manufacturer: Texas Instruments (TI)
- Category: Integrated Circuits (ICs)~PMIC - Voltage Regulators - DC DC Switching Controllers Package/Case: 20-LCC (J-Lead)
- Description: IC REG CTRLR MULT TOP 20PLCC
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
UC2526AQ Specifications:
- MfrPart.: UC2526AQ
- Mfr: Texas Instruments
- Description: IC REG CTRLR MULT TOP 20PLCC
- Product Category: Integrated Circuits (ICs)~PMIC - Voltage Regulators - DC DC Switching Controllers
- Package: Tube
- Series: -
- PartStatus: Obsolete
- OutputType: Transistor Driver
- Function: Step-Up, Step-Up/Step-Down
- OutputConfiguration: Positive
- Topology: Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull
- NumberofOutputs: 2
- OutputPhases: 1
- Voltage-Supply(Vcc/Vdd): 7V ~ 35V
- Frequency-Switching: 1Hz ~ 600kHz
- DutyCycle(Max): 49%
- SynchronousRectifier: Yes
- ClockSync: Yes
- SerialInterfaces: -
- ControlFeatures: Enable, Frequency Control, Reset, Soft Start
- OperatingTemperature: -25°C ~ 85°C (TA)
- MountingType: Surface Mount
- Package/Case: 20-LCC (J-Lead)
- UC2526AQ TI, IC REG CTRLR MULT TOP 20PLCC, Integrated Circuits (ICs)~PMIC - Voltage Regulators - DC DC Switching Controllers
UC2526AQ, TI authentic parts in stock from TI authorized distributors, order today, can ship immediately.
