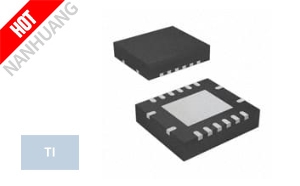

TPS74301RGWR Images
- Manufacturer: Texas Instruments (TI)
- Category: Integrated Circuits (ICs)~PMIC - Voltage Regulators - Linear Package/Case: 20-VQFN Exposed Pad
- Description: IC REG LIN POS ADJ 1.5A 20VQFN
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
TPS74301RGWR Specifications:
- MfrPart.: TPS74301RGWR
- Mfr: Texas Instruments
- Description: IC REG LIN POS ADJ 1.5A 20VQFN
- Product Category: Integrated Circuits (ICs)~PMIC - Voltage Regulators - Linear
- Package: Tape & Reel (TR),Cut Tape (CT)
- Series: -
- PartStatus: Active
- OutputConfiguration: Positive
- OutputType: Adjustable
- NumberofRegulators: 1
- Voltage-Input(Max): 5.5V
- Voltage-Output(Min/Fixed): 0.8V
- Voltage-Output(Max): 3.6V
- VoltageDropout(Max): 0.12V @ 1.5A
- Current-Output: 1.5A
- Current-Quiescent(Iq): 115 µA
- Current-Supply(Max): 1.5 mA
- PSRR: 73dB ~ 42dB (1kHz ~ 800kHz)
- ControlFeatures: Enable, Power Good, Tracking
- ProtectionFeatures: Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
- OperatingTemperature: -40°C ~ 125°C
- MountingType: Surface Mount
- Package/Case: 20-VQFN Exposed Pad
- TPS74301RGWR TI, IC REG LIN POS ADJ 1.5A 20VQFN, Integrated Circuits (ICs)~PMIC - Voltage Regulators - Linear
TPS74301RGWR, TI authentic parts in stock from TI authorized distributors, order today, can ship immediately.
