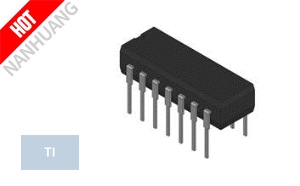

SNJ54S140J Images
- Manufacturer: Texas Instruments (TI)
- Category: Integrated Circuits (ICs)~Logic - Gates and Inverters SupplierDevicePackage: 14-CDIP
- Description: IC GATE NAND 2CH 4-INP 14CDIP
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
SNJ54S140J Specifications:
- MfrPart.: SNJ54S140J
- Mfr: Texas Instruments
- Description: IC GATE NAND 2CH 4-INP 14CDIP
- Product Category: Integrated Circuits (ICs)~Logic - Gates and Inverters
- Package: Bulk
- Series: 54S
- PartStatus: Active
- LogicType: NAND Gate
- NumberofCircuits: 2
- NumberofInputs: 4
- Features: -
- Voltage-Supply: 4.5V ~ 5.5V
- Current-Quiescent(Max): 44 µA
- Current-OutputHighLow: 60mA, 40mA
- LogicLevel-Low: 0.5V
- LogicLevel-High: 3.4V
- MaxPropagationDelay@VMaxCL: 6ns @ 5V, 150pF
- OperatingTemperature: -55°C ~ 125°C
- MountingType: Through Hole
- SupplierDevicePackage: 14-CDIP
- SNJ54S140J TI, IC GATE NAND 2CH 4-INP 14CDIP, Integrated Circuits (ICs)~Logic - Gates and Inverters
SNJ54S140J, TI authentic parts in stock from TI authorized distributors, order today, can ship immediately.
