LM5085SDE | TI IC REG CTRLR BUCK 8WSON

TI(Texas Instruments) Distributor & Supplier

Broadest Portfolio of TI Products in Stock

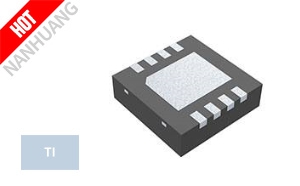

LM5085SDE Images

Manufacturer: Texas Instruments (TI)
Category: Integrated Circuits (ICs)~PMIC - Voltage Regulators - DC DC Switching Controllers Package/Case: 8-WFDFN Exposed Pad
Description: IC REG CTRLR BUCK 8WSON
COMPETITIVE PRICE and DELIVERY TIME
Order with confidence, there are no lead times for in-stock products.

Download Datasheet (PDF)

LM5085SDE Specifications:

MfrPart.: LM5085SDE/NOPB
Mfr: Texas Instruments
Description: IC REG CTRLR BUCK 8WSON
Product Category: Integrated Circuits (ICs)~PMIC - Voltage Regulators - DC DC Switching Controllers
Package: Tape & Reel (TR),Cut Tape (CT)
Series: -
PartStatus: Active
OutputType: Transistor Driver
Function: Step-Down
OutputConfiguration: Positive
Topology: Buck
NumberofOutputs: 1
OutputPhases: 1
Voltage-Supply(Vcc/Vdd): 4.5V ~ 75V
Frequency-Switching: Up to 1MHz
DutyCycle(Max): 100%
SynchronousRectifier: No
ClockSync: No
SerialInterfaces: -
ControlFeatures: Current Limit, Enable, On Time Control
OperatingTemperature: -40°C ~ 125°C (TJ)
MountingType: Surface Mount
Package/Case: 8-WFDFN Exposed Pad
LM5085SDE TI, IC REG CTRLR BUCK 8WSON, Integrated Circuits (ICs)~PMIC - Voltage Regulators - DC DC Switching Controllers
