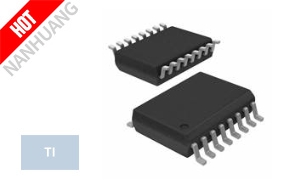

ISO1176DWR Images
- Manufacturer: Texas Instruments (TI)
- Category: Isolators~Digital Isolators Package/Case: 16-SOIC (0.295, 7.50mm Width)
- Description: ISO RS485/422 PROFIBUS 2.5KVRMS
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
ISO1176DWR Specifications:
- MfrPart.: ISO1176DWR
- Mfr: Texas Instruments
- Description: ISO RS485/422 PROFIBUS 2.5KVRMS
- Product Category: Isolators~Digital Isolators
- Package: Tape & Reel (TR),Cut Tape (CT)
- Series: -
- PartStatus: Active
- Technology: Capacitive Coupling
- Type: RS422, RS485
- IsolatedPower: No
- NumberofChannels: 3
- Inputs-Side1/Side2: 2/1
- ChannelType: Unidirectional
- Voltage-Isolation: 2500Vrms
- CommonModeTransientImmunity(Min): 25kV/µs
- DataRate: 40Mbps
- PropagationDelaytpLH/tpHL(Max): -
- PulseWidthDistortion(Max): -
- Rise/FallTime(Typ): -
- Voltage-Supply: 3.15V ~ 5.5V, 4.75V ~ 5.25V
- OperatingTemperature: -40°C ~ 85°C
- MountingType: Surface Mount
- Package/Case: 16-SOIC (0.295, 7.50mm Width)
- ISO1176DWR TI, ISO RS485/422 PROFIBUS 2.5KVRMS, Isolators~Digital Isolators
ISO1176DWR, TI authentic parts in stock from TI authorized distributors, order today, can ship immediately.
