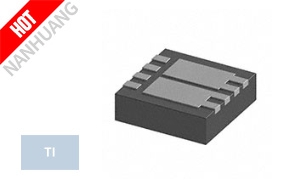

CSD87503Q3E Images
- Manufacturer: Texas Instruments (TI)
- Category: Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Arrays Package/Case: 8-PowerVDFN
- Description: MOSFET 2 N-CHANNEL 30V 10A 8SON
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
CSD87503Q3E Specifications:
- MfrPart.: CSD87503Q3E
- Mfr: Texas Instruments
- Description: MOSFET 2 N-CHANNEL 30V 10A 8SON
- Product Category: Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Arrays
- Package: Tape & Reel (TR),Cut Tape (CT)
- Series: NexFET™
- PartStatus: Active
- FETType: 2 N-Channel (Dual) Common Source
- FETFeature: Standard
- DraintoSourceVoltage(Vdss): 30V
- Current-ContinuousDrain(Id)@25°C: 10A (Ta)
- RdsOn(Max)@IdVgs: 13.5mOhm @ 6A, 10V
- Vgs(th)(Max)@Id: 2.1V @ 250µA
- GateCharge(Qg)(Max)@Vgs: 17.4nC @ 4.5V
- InputCapacitance(Ciss)(Max)@Vds: 1020pF @ 15V
- Power-Max: 15.6W
- OperatingTemperature: -55°C ~ 150°C (TJ)
- MountingType: Surface Mount
- Package/Case: 8-PowerVDFN
- CSD87503Q3E TI, MOSFET 2 N-CHANNEL 30V 10A 8SON, Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Arrays
CSD87503Q3E, TI authentic parts in stock from TI authorized distributors, order today, can ship immediately.
