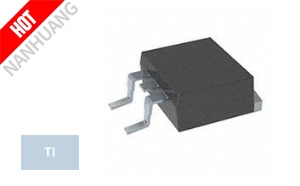

CSD18511KTT Images
- Manufacturer: Texas Instruments (TI)
- Category: Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single SupplierDevicePackage: DDPAK/TO-263-3
- Description: MOSFET N-CH 40V 194A DDPAK
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
CSD18511KTT Specifications:
- MfrPart.: CSD18511KTT
- Mfr: Texas Instruments
- Description: MOSFET N-CH 40V 194A DDPAK
- Product Category: Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single
- Package: Tape & Reel (TR),Cut Tape (CT)
- Series: NexFET™
- PartStatus: Active
- FETType: N-Channel
- Technology: MOSFET (Metal Oxide)
- DraintoSourceVoltage(Vdss): 40 V
- Current-ContinuousDrain(Id)@25°C: 194A (Ta)
- DriveVoltage(MaxRdsOnMinRdsOn): 4.5V, 10V
- RdsOn(Max)@IdVgs: 2.6mOhm @ 100A, 10V
- Vgs(th)(Max)@Id: 2.4V @ 250µA
- GateCharge(Qg)(Max)@Vgs: 64 nC @ 10 V
- Vgs(Max): ±20V
- InputCapacitance(Ciss)(Max)@Vds: 5940 pF @ 20 V
- FETFeature: -
- PowerDissipation(Max): 188W (Ta)
- OperatingTemperature: -55°C ~ 175°C (TJ)
- MountingType: Surface Mount
- SupplierDevicePackage: DDPAK/TO-263-3
- CSD18511KTT TI, MOSFET N-CH 40V 194A DDPAK, Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single
CSD18511KTT, TI authentic parts in stock from TI authorized distributors, order today, can ship immediately.
