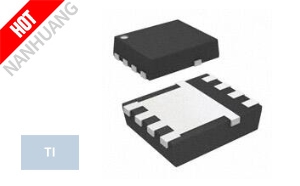

CSD17552Q5A Images
- Manufacturer: Texas Instruments (TI)
- Category: Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single SupplierDevicePackage: 8-VSONP (5x6)
- Description: MOSFET N-CH 30V 17A/60A 8VSON
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
CSD17552Q5A Specifications:
- MfrPart.: CSD17552Q5A
- Mfr: Texas Instruments
- Description: MOSFET N-CH 30V 17A/60A 8VSON
- Product Category: Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single
- Package: Tape & Reel (TR),Cut Tape (CT)
- Series: NexFET™
- PartStatus: Active
- FETType: N-Channel
- Technology: MOSFET (Metal Oxide)
- DraintoSourceVoltage(Vdss): 30 V
- Current-ContinuousDrain(Id)@25°C: 17A (Ta), 60A (Tc)
- DriveVoltage(MaxRdsOnMinRdsOn): 4.5V, 10V
- RdsOn(Max)@IdVgs: 6.2mOhm @ 15A, 10V
- Vgs(th)(Max)@Id: 1.9V @ 250µA
- GateCharge(Qg)(Max)@Vgs: 12 nC @ 4.5 V
- Vgs(Max): ±20V
- InputCapacitance(Ciss)(Max)@Vds: 2050 pF @ 15 V
- FETFeature: -
- PowerDissipation(Max): 3W (Ta)
- OperatingTemperature: -55°C ~ 150°C (TJ)
- MountingType: Surface Mount
- SupplierDevicePackage: 8-VSONP (5x6)
- CSD17552Q5A TI, MOSFET N-CH 30V 17A/60A 8VSON, Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single
CSD17552Q5A, TI authentic parts in stock from TI authorized distributors, order today, can ship immediately.
