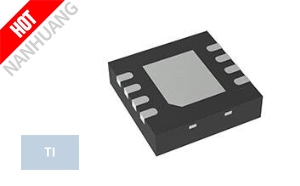

CSD16322Q5C Images
- Manufacturer: Texas Instruments (TI)
- Category: Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single SupplierDevicePackage: 8-SON
- Description: MOSFET N-CH 25V 21A/97A 8SON
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
CSD16322Q5C Specifications:
- MfrPart.: CSD16322Q5C
- Mfr: Texas Instruments
- Description: MOSFET N-CH 25V 21A/97A 8SON
- Product Category: Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single
- Package: Tape & Reel (TR),Cut Tape (CT)
- Series: NexFET™
- PartStatus: Obsolete
- FETType: N-Channel
- Technology: MOSFET (Metal Oxide)
- DraintoSourceVoltage(Vdss): 25 V
- Current-ContinuousDrain(Id)@25°C: 21A (Ta), 97A (Tc)
- DriveVoltage(MaxRdsOnMinRdsOn): 3V, 8V
- RdsOn(Max)@IdVgs: 5mOhm @ 20A, 8V
- Vgs(th)(Max)@Id: 1.4V @ 250µA
- GateCharge(Qg)(Max)@Vgs: 9.7 nC @ 4.5 V
- Vgs(Max): +10V, -8V
- InputCapacitance(Ciss)(Max)@Vds: 1365 pF @ 12.5 V
- FETFeature: -
- PowerDissipation(Max): 3.1W (Ta)
- OperatingTemperature: -55°C ~ 150°C (TJ)
- MountingType: Surface Mount
- SupplierDevicePackage: 8-SON
- CSD16322Q5C TI, MOSFET N-CH 25V 21A/97A 8SON, Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single
CSD16322Q5C, TI authentic parts in stock from TI authorized distributors, order today, can ship immediately.
